Division | Item | Specifications |
|---|---|---|
Basic information

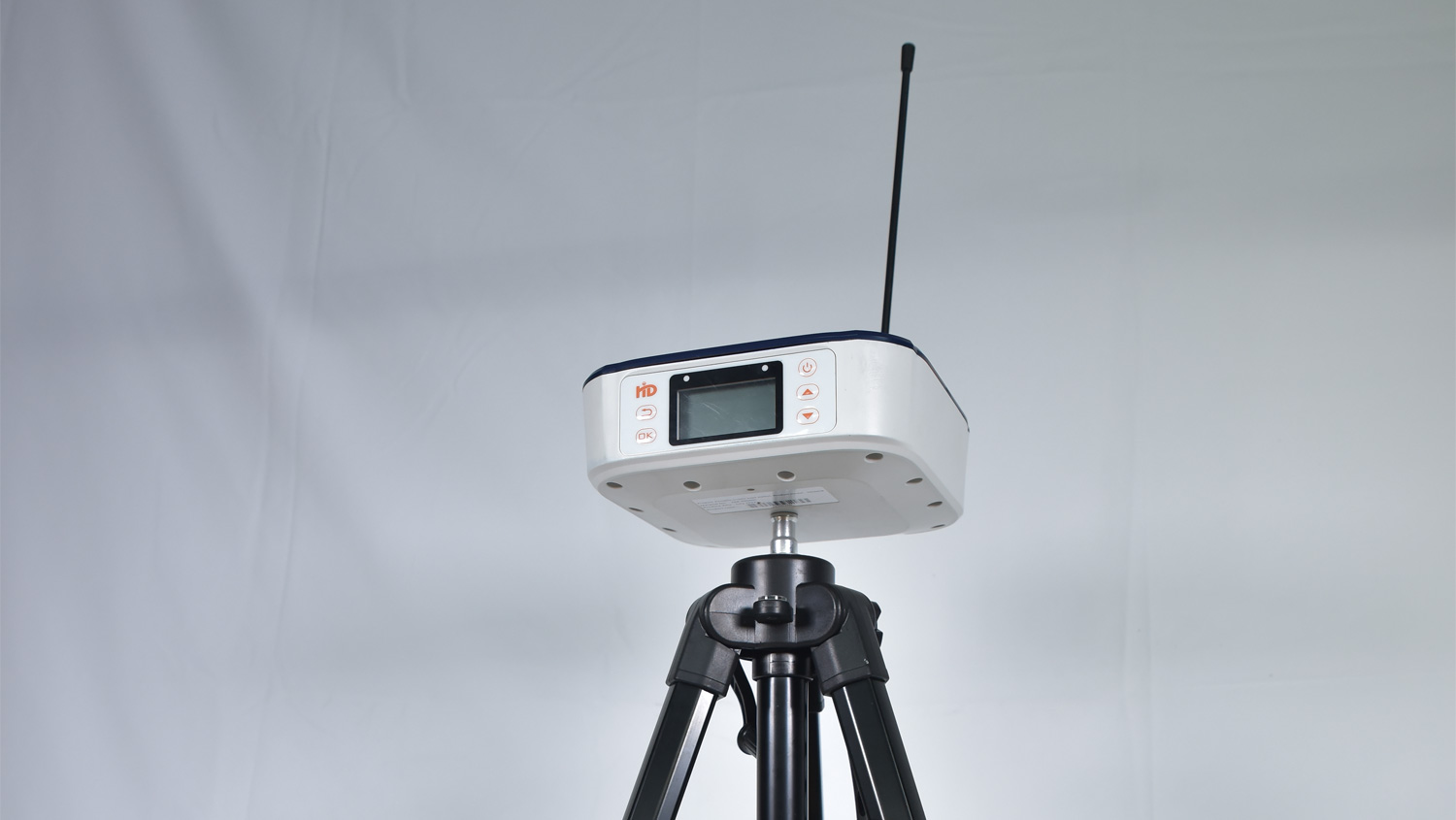

| Product name | Huida HD201 portable mobile base station |
Use | RTK-based high-precision mobile base station for agricultural machinery and drones | |
Manufacturing company
| Hosan Vision | |
Physical specifications | Size
| 178 mm × 178 mm × 74 mm
|
Weight | 1.05 kg
| |
Display | 2.5-inch LCD | |
Status display
| LED indicator
| |
Exterior material | Industrial aluminum + PC material | |
Durability | Passed 1m free drop test | |
GNSS·Communications | Supported GNSS | BDS, GPS, GLONASS, Galileo
|
Communication method | 4G / WiFi
| |
Differential transmission distance | About 3 km | |
Data storage
| Offline storage / Auto-retransmit | |
Web/APP Management | Remote setup and status inquiry | |
Electrical specifications | Operating voltage | DC 9–20V
|
Power consumption | 3W
| |
Continuous operating time | More than 24 hours | |
Power method | External power / removable battery | |
Environmental specifications | Operating temperature | -20°C ~ +70°C
|
Storage temperature | -40°C ~ +85°C
| |
Waterproof and dustproof | IP67
| |
Usage environment | Response to outdoor farming work | |
Characteristic | All-in-one design | GNSS, 4G, WiFi, and power integration |
High precision | Centimeter-level RTK performance | |
Long-term use | Operation for more than 24 hours | |
Portability | Compact, lightweight, and quick to install | |
Signal performance | Up to 3km coverage | |
Convenience | 2.5-inch LCD + easy operation |
